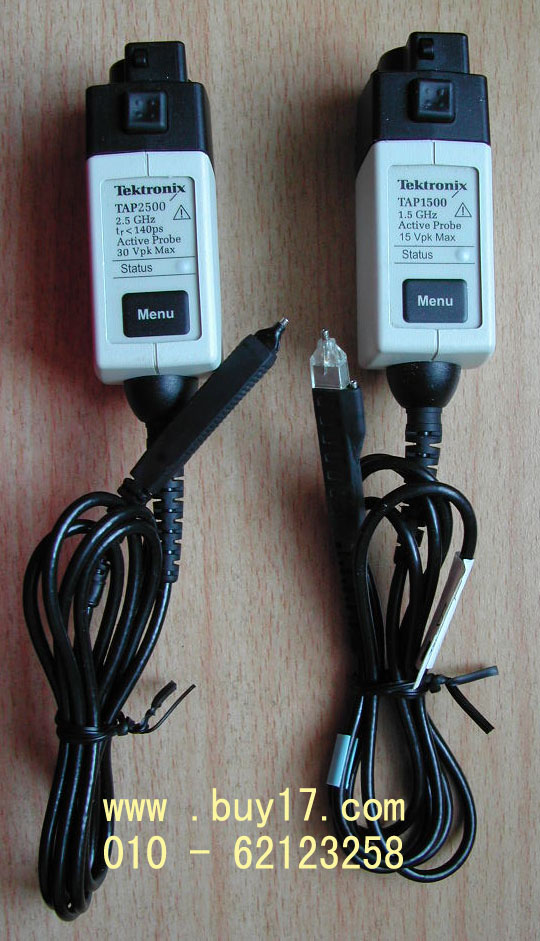

TAP2500 TAP3500 詳細(xì) 性能pdf  照片

性能指標(biāo)

帶寬 (Probe only) - TAP2500 ≥2.5GHz TAP3500 ≥3.5GHz

衰減 (Probe only) - 10:1.

上升時間 (Probe only) - TAP2500 <140ps. TAP3500 <130ps.

Input Capacitance - ≤0.8 pF.

Input Resistance - 40 kΩ.

輸入動態(tài)范圍 - -4 V to +4 V.

輸入偏置范圍 - -10 V to +10 V.

最大輸入電壓 (Nondestruct) - ±30 V (DC + peak AC).

Propagation Delay - 5.3 ns.

線長 1300mm

電源要求

TAP2500 and TAP3500 are powered directly by the DPO7000 and DPO4000 Series Oscilloscopes using TekVPI™ probe interface.

推薦示波器

• DPO7000 and DPO4000 Series Oscilloscopes with TekVPI™ probe interface.

特點

• Outstanding Electrical Performance
  • High Probe Bandwidth
  • Fast Probe Rise Time
  • Excellent Signal Fidelity
  • ≤0.8 pF Input Capacitance
  • 40 kΩ Input Resistance
  • -4 V to +4 V Input Dynamic Range
  • -10 V to +10 VDC Input Offset Range
  • ±30 V (DC + peak AC) Max Input Voltage (Nondestruct)
• Versatile Mechanical Performance
  • Small Compact Probe Head for Probing Small Geometry Circuit Elements
  • DUT Attachment Accessories Enable Connection to SMDs as Small as 0.5 mm Pitch
  • Robust Design for Reliability

• Easy-to-Use
  • Connects Directly to DPO7000 and DPO4000 Series Oscilloscopes Using the New TekVPI™ Probe Interface
  • Provides Automatic Units Scaling and Readout on the Oscilloscopes Display
  • Easy Access to Oscilloscope Probe Menu Display for Probe Status/Diagnostic Information and to Control Probe DC Offset

應(yīng)用

• Verification, Debug, and Characterization of High-speed Designs
• Signal Integrity, Jitter, and Timing Analysis
• Manufacturing Engineering and Test
• Signals with Voltage Swings up to 8 V_pk-pk

Selecting the right probe for your application is key to attaining the best signal fidelity in your measurements. Active probes provide truer signal reproduction and fidelity for high-frequency measurements. With our ultra-low input capacitance and unique interface, the TAP2500 and TAP3500 Single-ended Active FET probes provide excellent high-speed electrical and mechanical performance required for today’s digital system designs.

Specifically designed for use and direct connection to the TekVPI™ probe interface used on the DPO7000 and DPO4000 Series oscilloscopes, the TAP2500 and TAP3500 Active FET probes achieve high-speed signal acquisition and measurement fidelity by solving three traditional problems:

• Lower DUT loading effects with ≤0.8 pF input capacitance and 40 kΩ input resistance
• Versatile DUT connectivity for attaching to small SMDs
• Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO4000 Series Oscilloscope models up to 3.5 GHz
