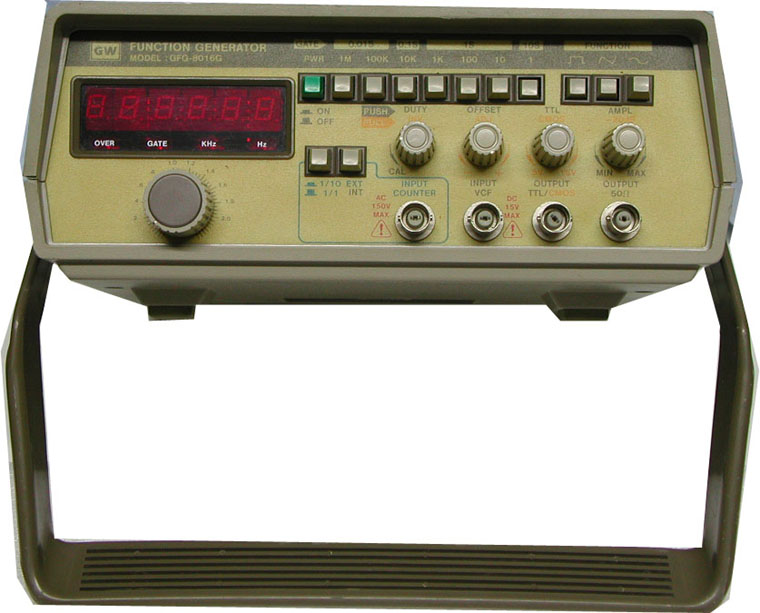

GFG-8016G 二手函數信號源

廠家: 臺灣固緯
尺寸: 23x9x28 cm
重量: 2.1kg

主要指標

• 頻率范圍: 0.2Hz to 2MHz 7 ranges
• 波形: SINE, TRIANGLE, SQUARE, TTL pulse and CMOS output
• 輸出幅度: >20Vp-p (open circuit) ; >10Vp-p (into 50歐姆 load)
• 阻抗: 50歐姆 10%
• 衰減: -20dB
• DC Offset: <-10V to > +10V (<-5V to > +5V into 50歐姆 load)
• 占空比: 1:1 to 10:1 continuously rating
• 顯示屏: 6 digits LED display

正弦波:

• - Distortion: <1% 0.2Hz - 200kHz
• - Frequency Response: <0.1dB 0.2Hz - 100kHz, <0.5dB 100kHz - 2MHz

三角波:

- Linear: 98% 0.2Hz - 100kHz, 95% 100kHz - 2MHz

方波:

• - Symmetry:<2% 0.2Hz - 100kHz
• - Rise/Fall Time:<120nS

CMOS:

• Level(4Vp-p  +_ 1Vp-p) ~ (14.5Vp-p+_ 0.5Vp-p) adjustable
• Rise/Fall Time:<120nS

TTL:

• Level:>3Vp-p
• Rise/Fall Time:<25nS

V.C.F.:

• Input Voltage:Approx. 0V ~ 10V (+_ 1V) input for 1000:1 frequency ratio
• Input Impedance:10千歐姆+_ 10%

FREQUENCY COUNTER:

• Mode: INT/EXT. switchable
• Range: 0.2Hz (5Hz EXT)~10MHz
• Accuracy: Time base accuracy+1 Count
• Time Base: Oscillation frequency 10MHz,Temp.stability +_10PPM (23攝氏度+_5攝氏度)
• Resolution: 0.1Hz, 1Hz, 10Hz, 100Hz
• Sensitivity:小于等于25mVrms

咨詢電話: 132- 4173- 5460 , 郵箱: 52634729@QQ.com
