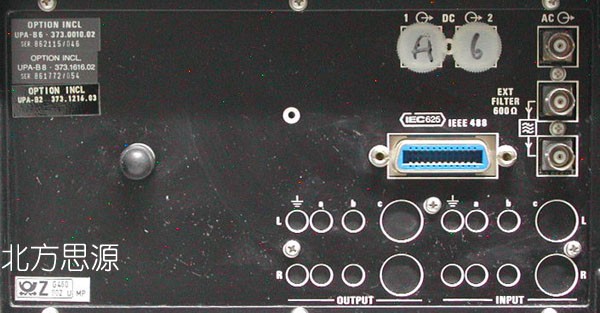

  后面板

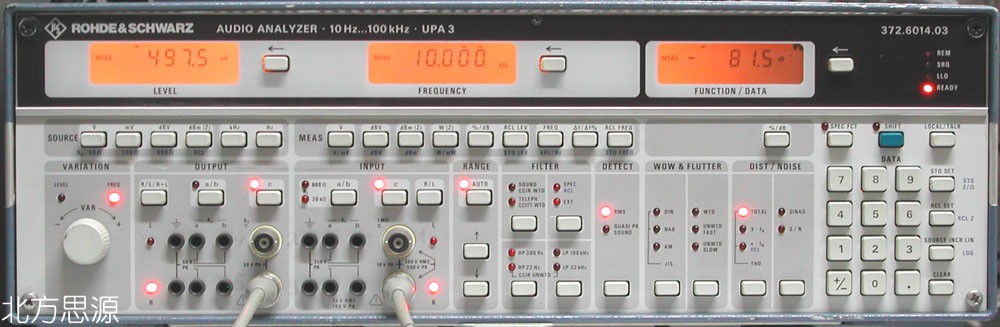

音頻分析儀 UPA3

廠家: 德國羅德與施瓦茨 Rohde & Schwarz

• 頻率范圍: 10 Hz - 100 kHz
• 按照DIN CCIR和CCITT標準進行噪聲測量
• 內置測量真有效值或準峰值的寬帶電平表
• 可同時測量電平和頻率
• 直流電壓測量
• 數字與模擬組合顯示方式
• 低失真和浮動輸出的合成信號發生器( 選件)
• 用開關選擇的發生器輸出阻抗
• 用于測量總諧波失真選頻諧波失
• 真的全自動失真度表或者信納比表(選件)
• 符合DIN CCIR IEC NAB JIS
• 標準的變音(wow) 和顫音
• (flutter) 測量表以及幅值波動表(選件)
• 頻率計和相位表
• 可存儲50套儀器設置的非易失存儲器

• 可在平衡和非平衡模擬音頻接口上測量所有基本音頻參數。
• 選件眾多，用戶可針對應用對儀器進行最佳配置。
• 各種濾波器選件可滿足不同音頻測量的需要。
• UPA3型是由UPA和一個信號發生器一個失真度表共同組成的高性價比測試裝置。
• UPA 具備遠程控制功能(IEC625/IEEE488)，測量速度很快，可用于在生產流水線上對音頻元器件進行自動測試。

基礎單元

• 音頻電壓表
  Voltage measurment range 10μV to 300V,unbalanced
  10μV to35V balanced
  Frequency range 10Hzto 100kHz
  22.4Hz and 300Hz highpass filters
  CCIR,CCITT
  Other filters contained in option UPA-B2
  Test inputs floating
  Balanced two 3-contact female connectors switch able R/L channel,600Ω/20kΩ
  Unbalance rejection >110dBat 50Hz
  Unbalanced two BNC female connectors switch able R/L channel,1MΩ
  Crosstalk attenution R/L >80dB at 20kHz
  Detector RMS-responding rectifier quasi-peak responding rectifier
  Level indication 5digits in mV,V dBm mW or W relative indication in % or dB
  Accuracy RMS(sine wave) ±1%±1digit(30Hz to 20kHz)
  Inherent noise
  CCIR,weighted(QPK) <10μV(unbalanced,600Ω)
  <20μV(balanced,600 Ω)
• 失真測量 (with Generator Option UPA-B6)
  Signal frequencyrange 30Hz to 100kHz
  Display range 0 to 120dB
  Accuracy(S/N ≤60dB) ±1dB
  Inherent S/N ration ±85dB or <20μV
  DC voltage measurment 0 to ±300V
  Test inputs see AF level meter but unbalanced only
  Accuracy ±1%±1digit
  Frequency counter
  Frequency measuremnt range 8Hz to 250kHz
  Required input vltage >10mV (S/N ratio>20dB)
  Accuracy ±0.005%±1digit
  Phase measurement
  Display range 0 to 180°
  Resolution 0.1°

選件

• 發生器 option UPA-B6 (UPA3 標配)
  Frequency range 10Hz to 100(110) kHz
  Accuracy ±0.01%
  Outputs like test inputs of AF level meter
  Unbalance rejection >80dB at 1kHz (bal,Vout >1)
  Crosstalk attenuation L/R >80 dB at 20kHz
  Output impedance 30Ω/200Ω/600Ω select able
  Output voltage no load 0.1mV to 12.4V
  Load impedancemax.load >200Ω/54mA
  Output circuit short-circuit-proof switched off incase of external feeding
  Inherent distortion(Vout>300mV) <-80 dB(30Hz to 20kHz)
  Frequency response(fer.to 1kHz) ±0.5% (10Hz to 20kHz)
• 失真表 option UPA-B8 (UPA3 標配)
  Frequency range fundamental 10Hz to 100kHz
  Frequency adjustment automatic or by frequency preselection
  Display modes toal harmonic distortion THD,selective distortion d2 to d9 SINAD,level
  Display range -120 to 0dB(distortion)
  Accuracy THD or SINAD,20Hz to 20kHz ±1dB(harmonics up to 100kHz)
• Wow and flutter meter(option UPA-B9)
  Measurement method IEC,NAB,JIS,2-sigma
  Measurement range 0.003 to 5%
  Accuracy ±10%
  Amplitued variation meter
  Frequency range 2 to 20kHz
  Variation
  Level 0to 20dB
  Frequency 0.1 to 300Hz
  Accuracy ±0.25dB (0 to 3dB)
• Special filter(option UPA-B2)
  A-filter to DIN IEC 651
  Bandstop filters pilot-tone trap with 15kHz lowpass filter line-frequency trap with 13kHz LP(both filters can be combined with A=filter)
  Band pass jilters standard frequencies 315Hz/1/3.15/6.3/10/12.5kHz additionally adjustable fixed center frequencies of 8/9/10/11/12/13/14/15/15.5/1/17/18/19/20/25kHz adjustable passband frequenciesfrom 23Hz to 25kHz tele phon band pass filter 320Hz to 3.4kHz band pass filter 2to 10kHz
  Lowpass filter 350Hz/1.04/3.5/7/10.4/15kHz
• Remotecontrol IEC 625-1(IEEE 488 )control of all instrument functions
