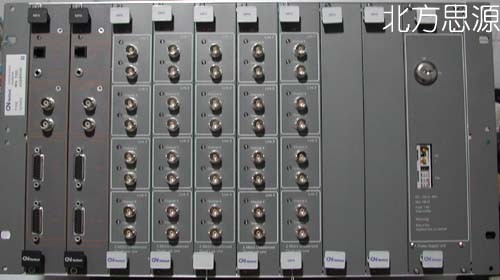

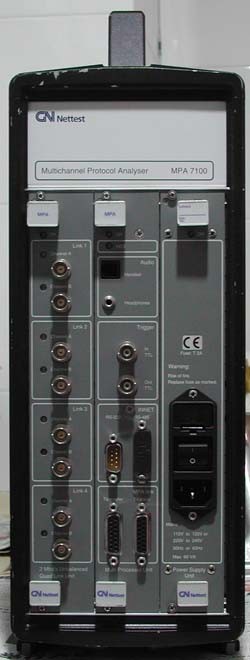

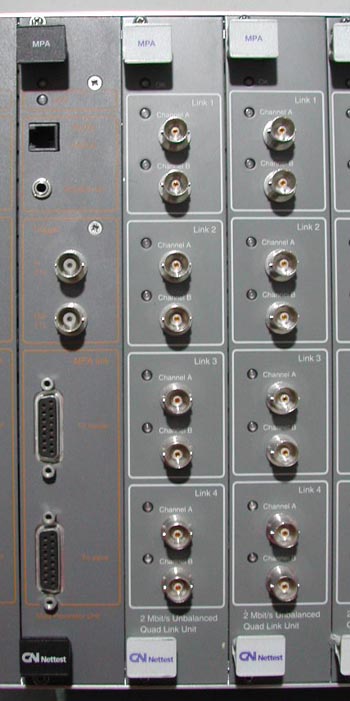

局部照片
廠家: GN Nettest
官網介紹
性能指標pdf
包含所有主要的電信協議：SS7, DASS2, DPNSS, BTNR167, GSM, ETSI Q931, INAP 等等.
|
所 配 模 塊 |
|||
| MPA7300 | Multi Processor *2 | 2 Mbit/s Unbalanced Quad Link *1 | - |
| MPA7300 | Multi Processor *3 | ||
| MPA7300 | Multi Processor *1 | 2 Mbit/s Unbalanced Quad Link *1 | 2 Mbit/s Balanced Quad Link *1 |
| MPA7200 | Multi Processor *2 | 2 Mbit/s Unbalanced Quad Link *5 | PCI Link Interface *1 |
| MPA7200 | PCI Controller *2 | 2 Mbit/s Unbalanced Quad Link *6 | - |
| MPA7100 | Multi Processor *1 | 2 Mbit/s Unbalanced Quad Link *1 | |
| MPA7100 | Multi Processor *1 | 2 Mbit/s Unbalanced Quad Link *1 | - |
◆系統軟、硬件性能非常穩定，應用極其廣泛，技術服務全面專業
◆先進的硬件結構（前后臺處理分開），超大容量處理能力（上百小時不間斷記錄）保證數據處理快速可靠，晝夜不間斷
◆所有規程同時解碼，跨鏈路實時跟蹤呼叫，保證快速故障定位
◆自動識別信令及消息序列錯誤，給出告警
◆智能化自動搜索信令時隙
◆多種應用：信令配合、呼叫追蹤、接通率分析、呼損分析、網絡規劃、GSM網絡優化，MAP層增值業務開發、網關計費驗證，欺詐檢測、網絡告警監測等
◆ODBC開放數據庫格式及中文界面
◆中文操作界面仿真設計 提供友好的人機交互界面，系統操作簡單易學。
系統標準配置
| 操作系統 | Microsoft Windows2000 |
| CPU | Pentium 400MHz |
| RAM | 128MB |
| 顯示模式 | SVGA,TFT真彩色 |
| 緩存 | 1Gbyte disk on the MPU |
| 硬盤 | 12GB |
Used for acceptance testing, detailed trouble shooting, daily maintenance and performance analysis of telecoms networks and switches.
多達10種協議同時分析。Easy to use multi-link instrument with true multi-protocol analysis capability for up to ten protocols simultaneously.
Ability to store 1GB of data with 1ms resolution, filter trigger and perform sequence recording for easy analysis.
協議分析
協議分析功能捕獲發出的信號單元并以解碼的形式顯示。The protocol-analysis function captures signaling units and displays them in
decoded form. The captured signaling units in the log are time-stamped with a
resolution of 1 millisecond. The MPA 7300provides full correlation of signaling
information recorded from all connected signaling links. Different protocol
descriptions may be associated with the various signaling-link interfaces.
National protocol descriptions can easily be customized. Automatic error
recognition The unique MPA 7300 expert system automatically recognizes all
invalid signaling messages and sequences (all valid messages and sequences are
contained in the protocol description). In case of a signaling error (syntax
error, messages out of sequence or timeout between two messages), the collected
events will be stored with an error message in the log.
濾波器
In this context, filtering means controlling which signaling messages/sequences
and alarms are stored in the event log. An event recognizer in the MPA 7300 is a
mechanism that allows the user to look for individual signaling messages and
alarms with a specific content – e.g. ISUP RELease messages with cause 17
“user busy”. Sequence recognizers are used to capture a complete sequence of
events forming a meaningful transaction – e.g. a telephone call or a Service
800 IN transaction. Both event recognizers and sequence recognizers can be used
as filter conditions. The user can select from a wide range of predefined
“click-and-go” events and sequence recognizers. Up to 500 concurrent
calls/transactions can be followed by a sequence recognizer.
觸發類型
The MPA contains two trigger types: One start trigger for enabling (open)
storage of events and one stop trigger for disabling (close). An event
recognizer can be selected as start trigger. A timing offset or event-number
offset can also be specified before the event recognizer.
