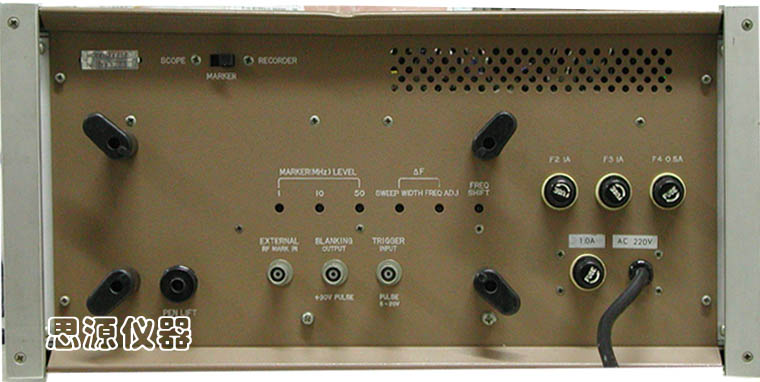

后面板

掃頻信號源 VHF SWEEP GENERATOR 4410C

廠家: NIHON TSUSHINKI CO.,LTD
尺寸: 41x20x34 cm
重量: 14 kg

An all-solid-state VHF sweep generator, Model 4410C VHF Sweep Generator has been designed and manufactured for testing and adjusting transmitters,TV satellite devices,filters and so forth in VHF band in combination with the oscilloscope.Model 4410c is featured with a number of unique electrical performances, the most noteworthy of which is that the entire band ranging form 5MHz to 500MHz may be swept in one sweep,for Model 4410c to be highly versatile to carry out the measurements and the testings over the broad frequency range, in addition,the osillation frequency being varied by the DC voltage control,the frequency is easy to control remotely,permitting model 4410c to serve as a powerful measuring insturment on the production line capable also of serving as the CW oscillator with output level of 1Vrms(120dB) and containing the attenuator, model 4410c is convenient to conduct the measurement over the broad frequency range.

掃描信號頻率范圍: 5 to 500MHz

掃描寬度:

• F1-F2 mode: continuously variable from 2 to 490MHz
• ΔF mode:Continuously variable from 2 to 40MHz

輸出信號平坦度:

• over the entire range:flat within ±0.5dB
• ΔF mode:flat within ±0.25dB

輸出電平: 1v(rms)(120dB)across 50 ohm

掃描信號線性: for the full sweep,5% or less

sweep period:

• line:capable of being synchronized with 50Hz or 60Hz
• Internal sync:continuously variable in four steps from 0.01 to 100sec.capable of being synchronized with the external signal.operable in the signle sweep mode.

水平掃描輸出:10±0.5v(P-P)

輸出衰減:

• Max.80dB in 1dB x 10 plus 10dB x 7
• Accuracy:
  Better than ±0.5dB for 1dB step
  Better than ±1dB for 10dB step
  ±2dB exclusively for 70dB

Marker:

• variable marker:pulse marker,continuously variable from 5 to  500MHz
• Fixed Markers:Harmonic birdy markers,frequencies:Higher harmonics of 1,10 and 50 MHz controlled by the crystals to the accuracy of 1x10^-4,which can be, both individually and in combination of any two or all,displayed

External Markers: external markers are applicable

spurious output level: -30dB or less

self-contained detector:

• input impedance: 50ohm
• vswr:1.1 or less over 100KHz to 1000MHz

tolerable power input: 50mW or less
