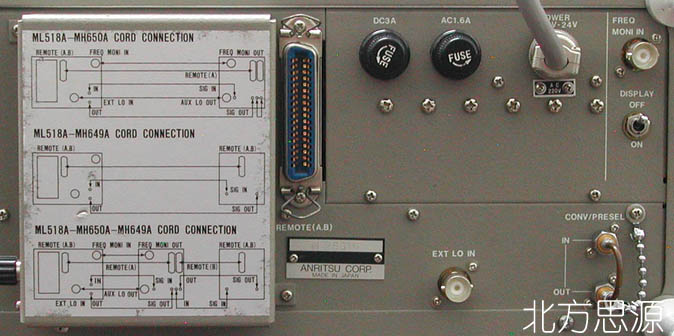

后面板Interference/Field Strength Meter
廠家: 日本安立
· 頻率范圍 25 - 520MHz
· 可以1kHz的精度調整頻率
·
記錄儀輸出的快速響應，允許對極限場變量進行可靠的記錄
· 干涉波的CISPR一致性測試的有效測試手段
· 電平測試靈敏度(EMF) : 0dBμv(25-222MHz) ; 5dBμv(222-520MHz)
· 場強測試范圍 : -10~130dBμv/m
· 分辨帶寬 : 15KHz,120KHz,200KHz
· 天線另配
ML518A 可配合 MH650A Frequency Converter 與 MH649A Preselector 使用
The ML518A is a universal multi-purpose field strength meter with many functions
and excellent performance in the frequency range from 25 to 1700 MHz. It can be
used for investigating the service area of broadcast waves, radio transmission
tests, measurement of spurious emissions of transmitters, measurement of antenna
characteristics, and for measuring interference waves in conformity with the
CISPR specifications.
- A desired frequency can be precisely captured because a tuning frequency can
be set up to 1700 MHz with an accuracy of 1 kHz.
- Quick response of the recorder output permits faithful recording of extreme
field variations.
- Efficient measurement of interference waves in conformity with the CISPR
specifications.
- The average value, quasi-peak value, and peak value detection modes allow
measurement of radio signals (TV, noise, etc.) which cannot be evaluated by the
average value alone.
