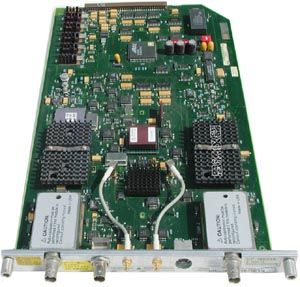

The Agilent HP 16534A is a used 8 Channel,
Digitizing Oscilloscope Module that offers the advantages of a
full-featured, deep memory, digitizing oscilloscope integrated into your
Agilent logic analysis system.
Use as a Standalone Scope with Many Channels.
Capture up to 32K on each of eight analog channels simultaneously
(single time base).
Measure slow and fast events with additional oscilloscope modules to
create a multiple time base digitizing oscilloscope.
For large channel count measurements, configure as many as 20 scope
channels in a single system.
Combine Scope with Other Logic Analysis Modules.
You can arm or trigger the oscilloscope from any module in the logic
analysis system to capture and display the analog events that affect your
digital system.
Save Time with Autoscale, Auto-Measure, Voltage and Time Markers, and
Colors.
Select autoscale and the scope adjusts the time, voltage and trigger
levels instantly for a stable display of your waveforms.
