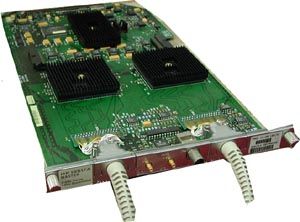

16517A 16 Channel, 4 GHz Logic Analyzer High-Speed State and Timing Module
The Agilent 16517A allows you to trace more channels with higher accuracy than
ever before in a logic analyzer. The 64K deep memory lets you capture data over
many clock cycles while retaining the highest multi-channel accuracy ever in a
logic analyzer. Solve your toughest problems with the fastest, most flexible
state analysis available.
特性
Verify the timing of critical edges with 250 ps resolution across up to 40
channels, or 500 ps resolution across up to 80 channels.
Use the 1 GSa/s synchronous state analysis to view high-speed data streams
across up to 80 channels.
The 250 ps resolution of this analyzer and phase-locked loops, keeps the
skew between channels to ± 250 ps.
The 250 ps precision (channel-to-channel skew) allows this logic analyzer
to be used in place of an oscilloscope for characterization.
The high channel count of a logic analyzer makes this a much more
efficient process.
The16500C family lets you configure your mainframe with the modules you
need today, while providing you the flexibility to grow with your evolving
digital design needs.
16518A 16-Channel, 4 GHz High-Speed State and Timing Module Expansion Card
The Agilent 16518A allows you to trace more channels with higher
accuracy than ever before in a logic analyzer. The 64K deep memory lets you
capture data over many clock cycles while retaining the highest multi-channel
accuracy ever in a logic analyzer. Solve your toughest problems with the
fastest, most flexible state analysis available. This expansion card requires
the Agilent 16517A 16-Channel, 4 GHz Logic Analyzer High-Speed State and Timing
Module.
特性
Find the Cause of Elusive Problems
Verify the timing of critical edges with 250 ps resolution across up to 40
channels, or 500 ps resolution across up to 80 channels.
Use the 1 GSa/s synchronous state analysis to view high-speed data streams
across up to 80 channels.
The Ultimate in Timing Resolution and Accuracy
The 250 ps resolution of this analyzer is only part of the story. An
innovative approach, using phase-locked loops, keeps the skew between
channels to ± 250 ps.
Precisely Characterize Setup or Hold Times
The 250 ps precision (channel-to-channel skew) allows this logic analyzer
to be used in place of an oscilloscope for characterization.
The high channel count of a logic analyzer makes this a much more
efficient process.
Modularity
Agilent Technologies modular 16500C family lets you configure your
mainframe with the modules you need today, while providing you the
flexibility to grow with your evolving digital design needs.
