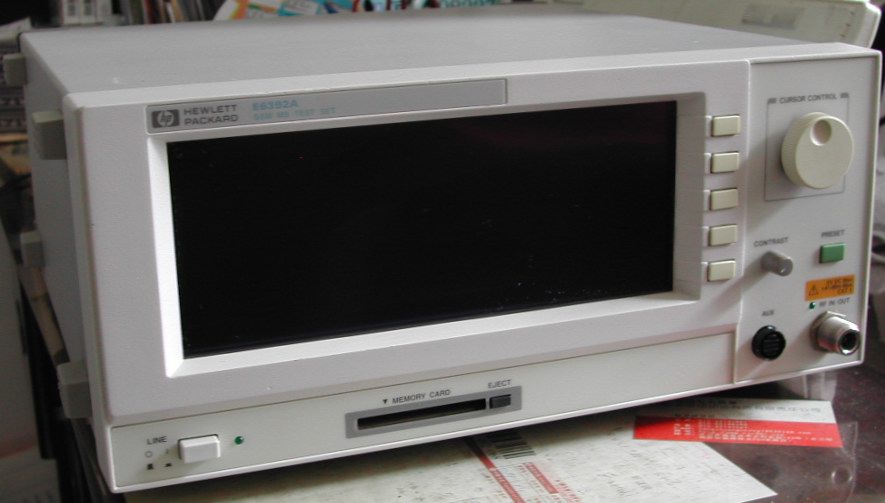

GSM手機綜合測試儀 HP E6392A 惠普/安捷倫

儀器儀表 銷售 出租

配置選件 OPT002

詳細指標--PDF文件

RF信號發生器

• Frequency Range: 935MHz to 1880 MHz
  Frequency Resolution: 200 kHz
  Modulation: 0.3 GMSK
  Output Power: -110 dBm to -50 dBm

RF分析儀

• Frequency Range: 890 MHz to 1785 MHz
  Frequency Resolution: 1 Hz ( 100 kHz in hop mode )

Transmitter Carrier Peak Power Measurement

• Range: -20 dBm to +39 dBm
  Resolution: 0.2 dB

PowerRamp Measurement

• Range: -11 dBm to +39 dBm
  Resolution: 0.2 dB

Phase & Frequency Error Measurement

• Input Level Range: -11 dBm to +39 dBm
  Input Phase Error Range: 0 to 20°
  Frequency Error Measurement Range: ±9 kHz

直流電源

• Range: 3 Vdc to 9 Vdc
  Resolution: 0.1 V
  Maximum Current: 1 A, 2 A peak
  DC Current Measurement Range: 3 mA to 1000 mA

存儲卡: 512 KB SRAM PCMCIA

RF Input/Output

• Maximum Safe Reverse Power: +41 dBm (peak)
  Impedance: 50 ohm nominal
  SWR: ≤1.5:1
  Connector: Type N, female

咨詢電話: 132- 4173- 5460 , 郵箱: 52634729@QQ.com
