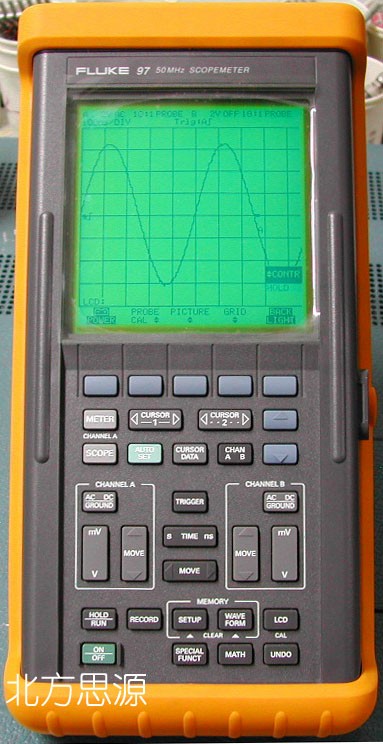

手持示波表 Fluke PM97

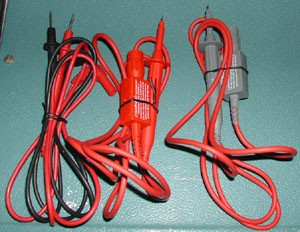

表筆 附件
廠家: 飛利浦/福祿克
- 帶寬 50MHz 雙通道
- 時基范圍 : 10ns/div-60s/div
- 垂直靈敏度: 1mv-100v
- 四百億分之一秒毛刺捕捉
- 可存儲10個面板設置
- 采樣率:25MSa
- RS-232-C接口
- 14個游標讀出
- 背光燈大屏幕LCD顯示
- 最大輸入電壓:真有效值交流或者交流和支流到600V(1700V 峰-峰值)
- 計數頻率從 1Hz-5MHz-50MHz在游標范圍內
Dual trace, hand held, oscilloscope/meter employing a 4.7 display - 3 2/3
digits.
- Dual Trace 50 MHz Bandwidth
- 10 nanoseconds to 60 seconds per division
- 1 millivolt to 100 volts per division
- 40 nanosecond Glitch Capture
- Stores 10 Front Panel Set-Ups
- 25 Mega samples per second
- 14 Cursor Measurements
- Large Backlight LCD Display
- Counts frequency from 1Hz to 5MHz to 50MHz with scope cursors
- Min, Max, Avg, Record, Relative (zero), dBm,
dBV, dBW, Audio Watts, % scale, frequency, smoothing, change alert.
- Also has function generator with square
wave, sine wave, voltage ramp or current ramp output waveforms.
- Hard copy output available through Optical RS232C
port.
- Time/Division - 10ms to 60sec/div.
Volts/Division - 1mV to 100V/div.
- Maximum input volts - TrueRMS AC or AC+DC to
600V (1700V pk-pk).
- Counts frequncy from 1 Hz to 5 MHz to 50 MHz
with scope cursors.
