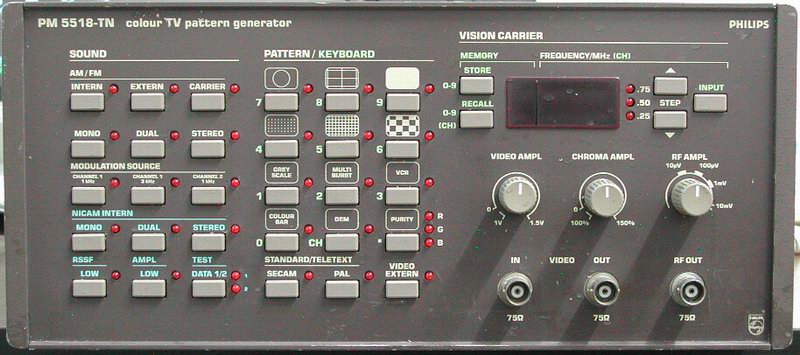

PAL,NTSC,SECAM全制式電視圖象信號源 飛利浦PM5518TN

• Frequency Range: 32 to 900 MHz
• Setting: Keyboard
• Resolution:
  • 100 kHz Steps: 32.0 to 99.9 MHz
  • 250 kHz Steps: > 100 MHz
• Tolerance:
  • < 25 kHz: 32 to 300 MHz
  • < 35 kHz: 300 to 470 MHz
  • < 50 kHz: 470 to 900 MHz
• RF Output Voltage: > 10 mV
• Impedance: 75 W
• Attenuation: > 60 dB continuous
• Frequency Response:
  • ±2 dB: 32 to 300 MHz
  • ±3 dB: 300 to 470 MHz
  • ±2 dB: 470 to 900 MHz
• Video Input Voltage: 1 Vpp
• Video Output Voltage: 0 to 1.5 V
