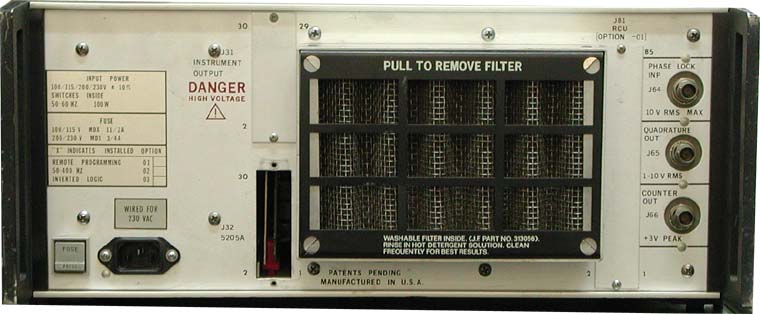

后面板廠家: 美國福祿克
尺寸: 43x18x58cm
重量: 20kg
電壓范圍：1mV - 100V(配合 Fluke
Model 5205A or 5215A Amplifiers 可至 1000V)
(1mV,
10mV, 100mV, 1V, 10V, 100V)(0.1mVrms-1.199999mVrms)(10Vrms-119.9999Vrms)
電壓解析度：1nV - 1mV
誤差調節：±3% or ±0.3%
頻率范圍：10 Hz - 1.2MHz
頻率解析度：0.01Hz - 100Hz
The 5200A Alternating Voltage Calibrator is a
precision high-performance alternating voltage source with proven reliability
and exceptional stability and accuracy over a broad frequency range. Wide output
range & lab standard accuracy makes this instrument useful in both
laboratory and manufacturing environments.
Outputs from 100 μV RMS to 120 V RMS
at a 50 mA current level.
Frequency range from 10Hz to 1.2MHz with accuracy of ±(1.0% + 0.1%).
Amplitude range is 1 mV to 100 V in seven ranges.
6-digit
resolution, yielding 1 nV steps on the 1 mV range increasing to 1 mV steps on
the 1000 V range, with an error measurement provided in two ranges (±3% or ±0.3%).
20% overrange capability.
